How to register FIBERME FCM5600 With FAG4104/8 using FRC
On this page
To establish seamless connectivity between the IP-PBX and the FXO Gateway, trunking must be configured on the FXO device to integrate with the IP-PBX. This configuration allows extensions on the IP-PBX to access and utilize the landline through the FXO Gateway. Furthermore, the trunk will be established over the cloud using FRC, ensuring flexibility so that the landline and gateway can be located in one site while the IP-PBX is hosted in a different site.

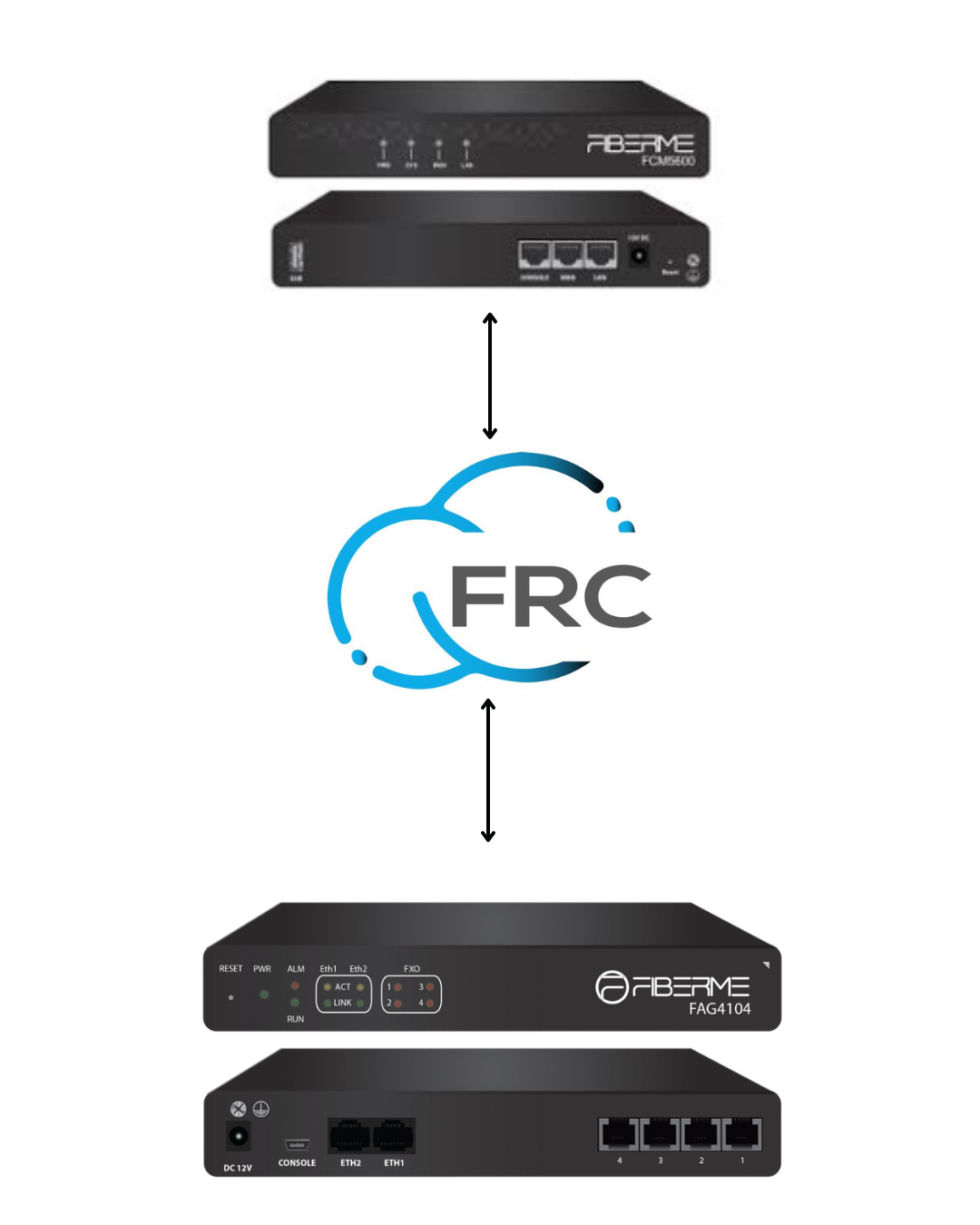

Topology#
1- On FCM5600 (IP-PBX)#

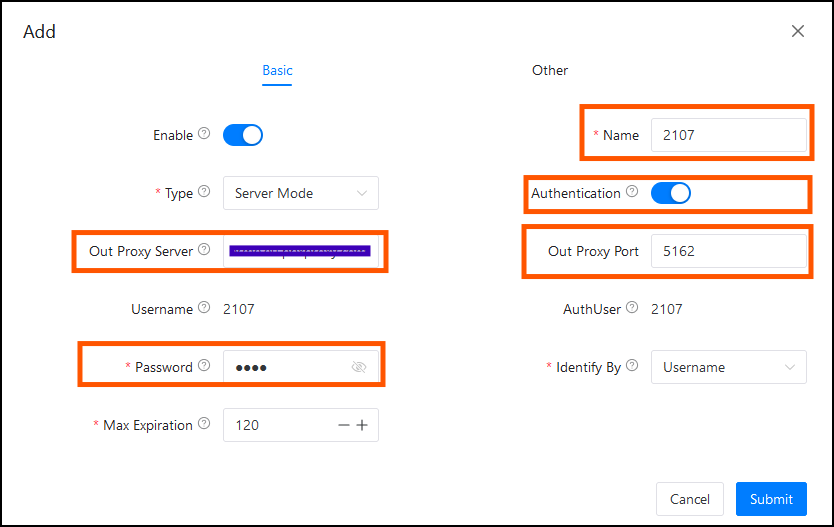

1.1- Create SIP Trunk on FCM5600#
1- Navigate to PBX Settings-> Extensions/Trunks -> Trunks.
2- Choose Trunk and navigate to add.
Make Type “Server mode“
Enable “Authentication”
-Write your Domain in ” Out Proxy Server ” -> yourcompanyname.fiberme.cloud
Write Out proxy port -> 5162
write username -> any name you need as 2107
Write Password

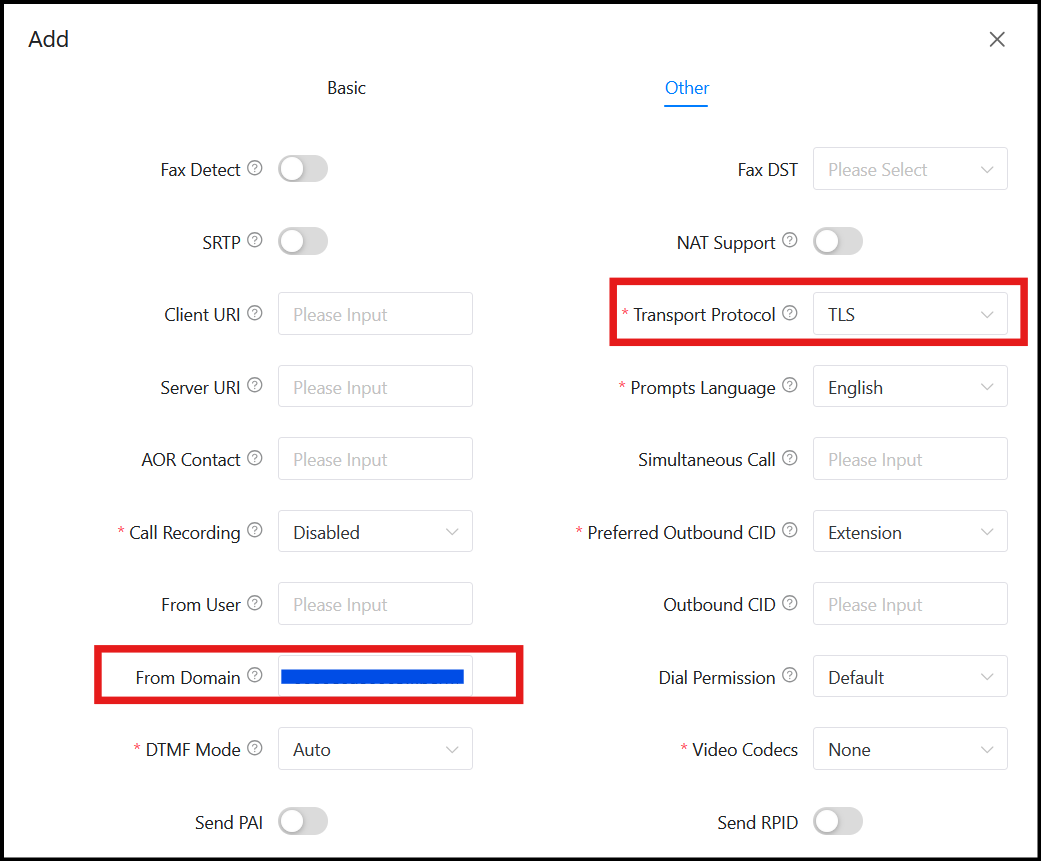

3- Navigate to Other
Make Transport Protocol -> TLS
Write your Domain in “From Domain“
– Click on Submit Then aplay changes

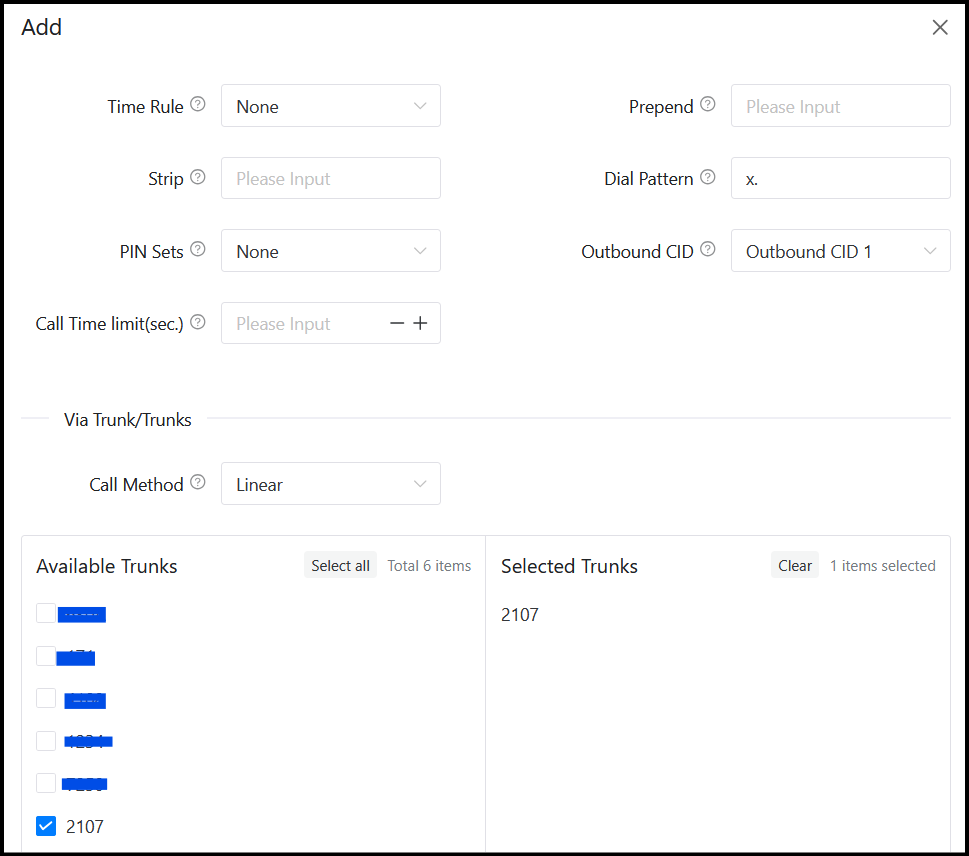

1.2 – Configure Outbound Routes on FCM5600#
Navigate to “PBX Settings -> Outbound Control -> Dial Rules”
Press on + to add new rule
In the Dial Pattern field, please write: X.
From “Available Trunks” please select the trunk that you created “2107“
Click on “Submit” to save to rule details.
Please be sure that all extensions in IPPBX can use this dial rule.
1.4 – Configure Inbound Routes on FCM5600#

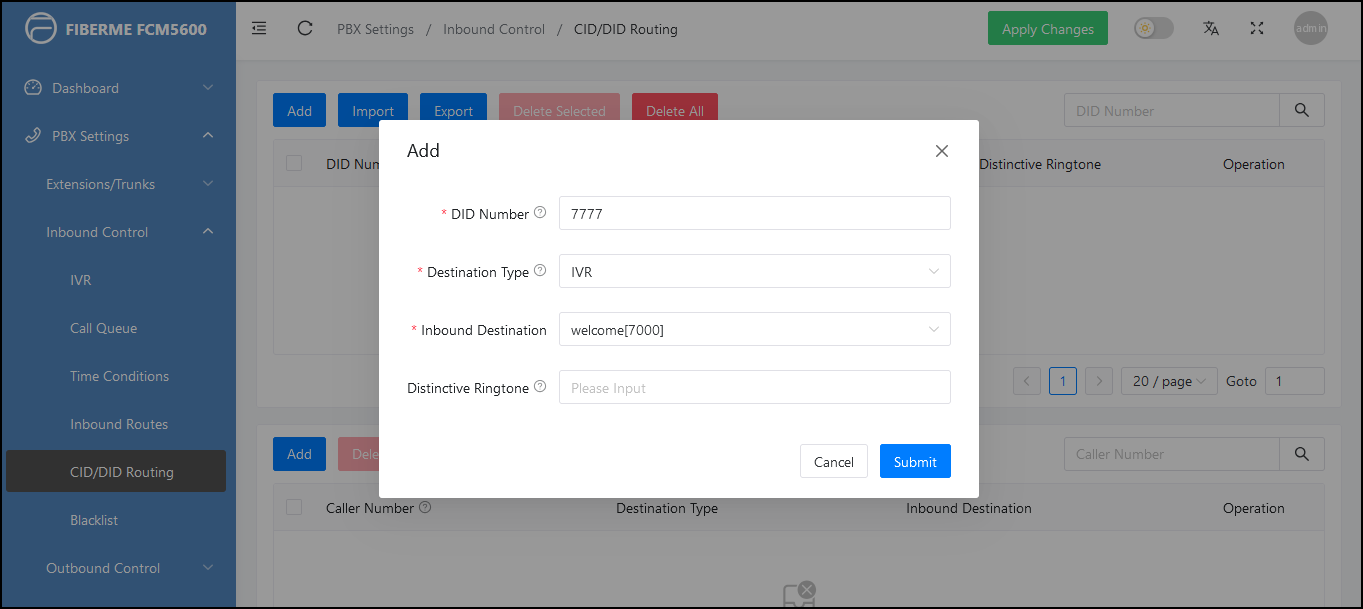

1- Navigate to “PBX Settings -> inbound Control -> CID/DID Routing”
2- Press on Add to add new rule
DID Number: 7777 (This number we will configure in FAG410X in bound number )
Destination Type: IVR (any Destination you need)
Inbound Destination
Click on Submit then apply changes
FAG4104/8 (FXO Gateway)#

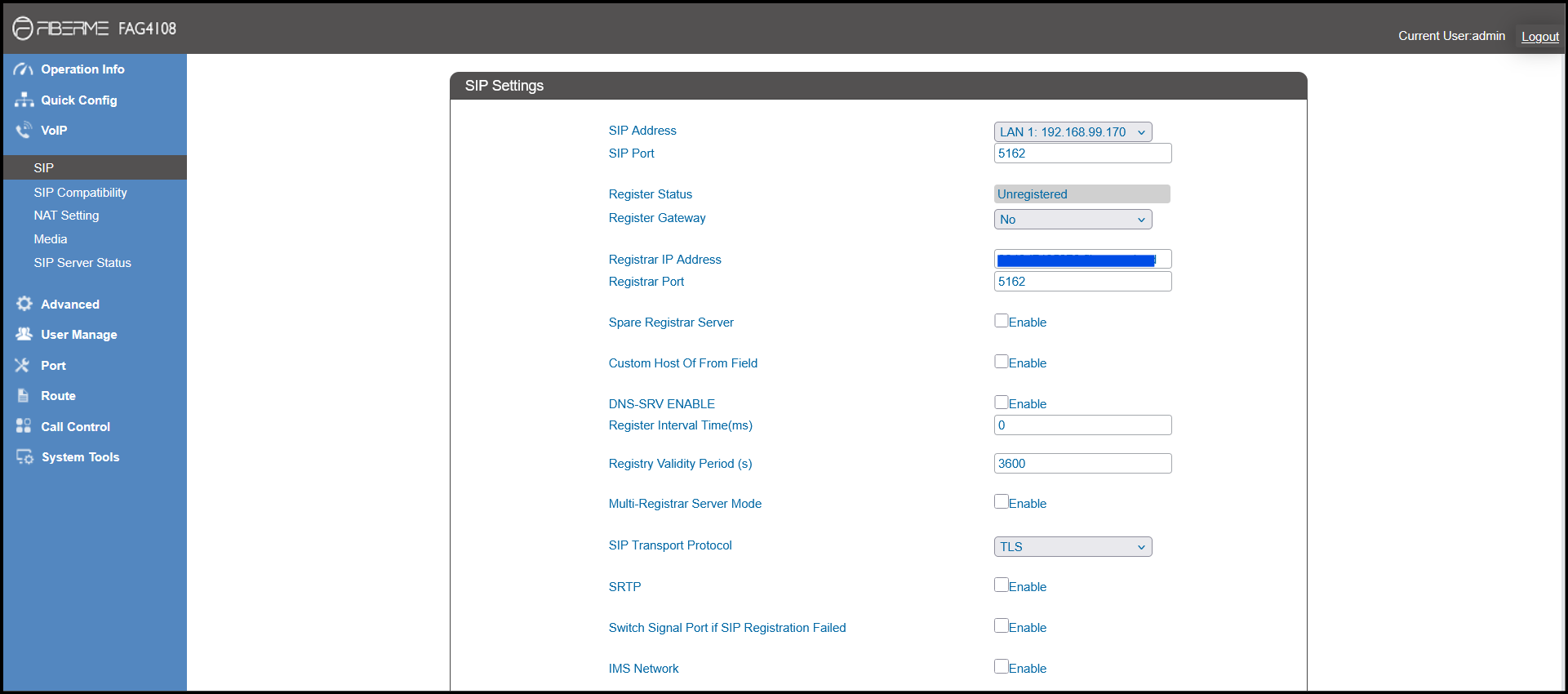

1- Navigate to VOIP -> SIP
2- Write Your Domain in Registrar IP Address -> yourcompanyname.fiberme.cloud
3- Write Register port -> 5162
4- Make SIP Transport Protocol ->TLS

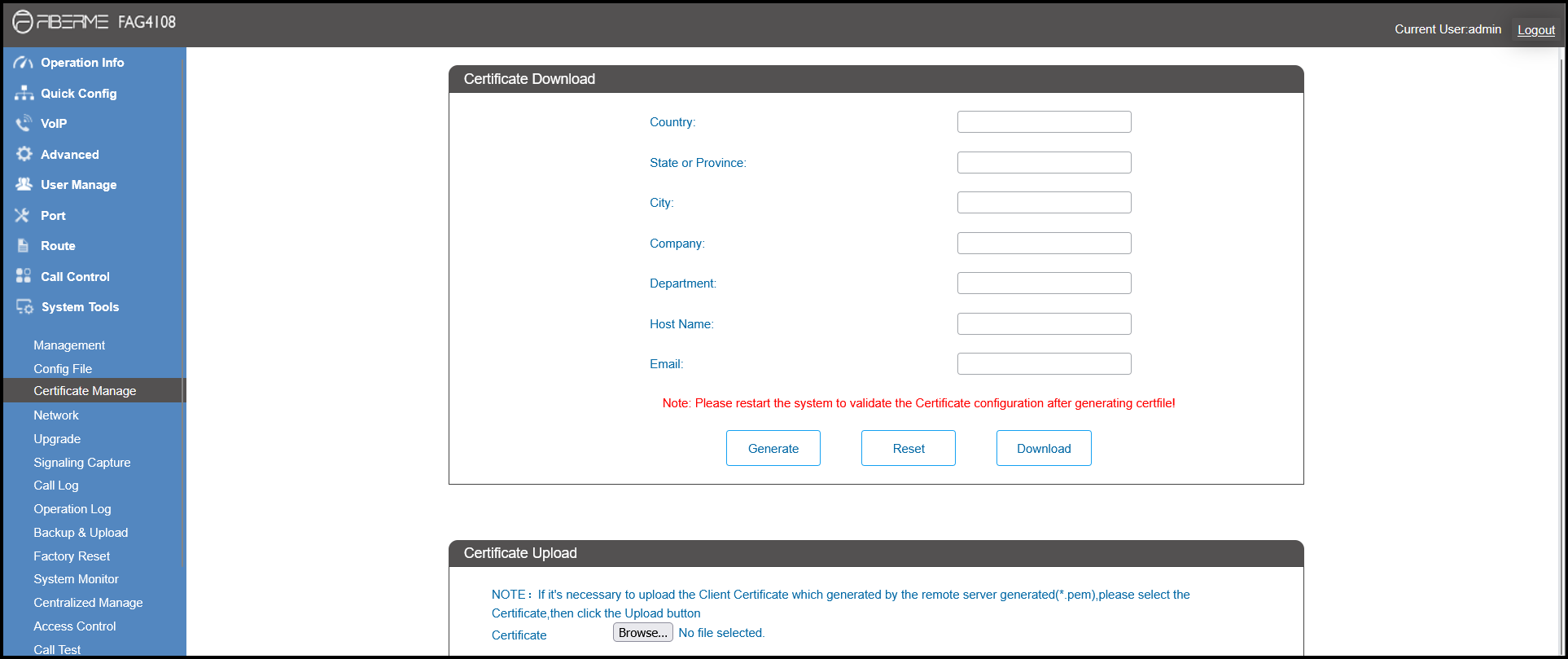

5- Navigate to system tools -> certificate manage
6- Write your Data

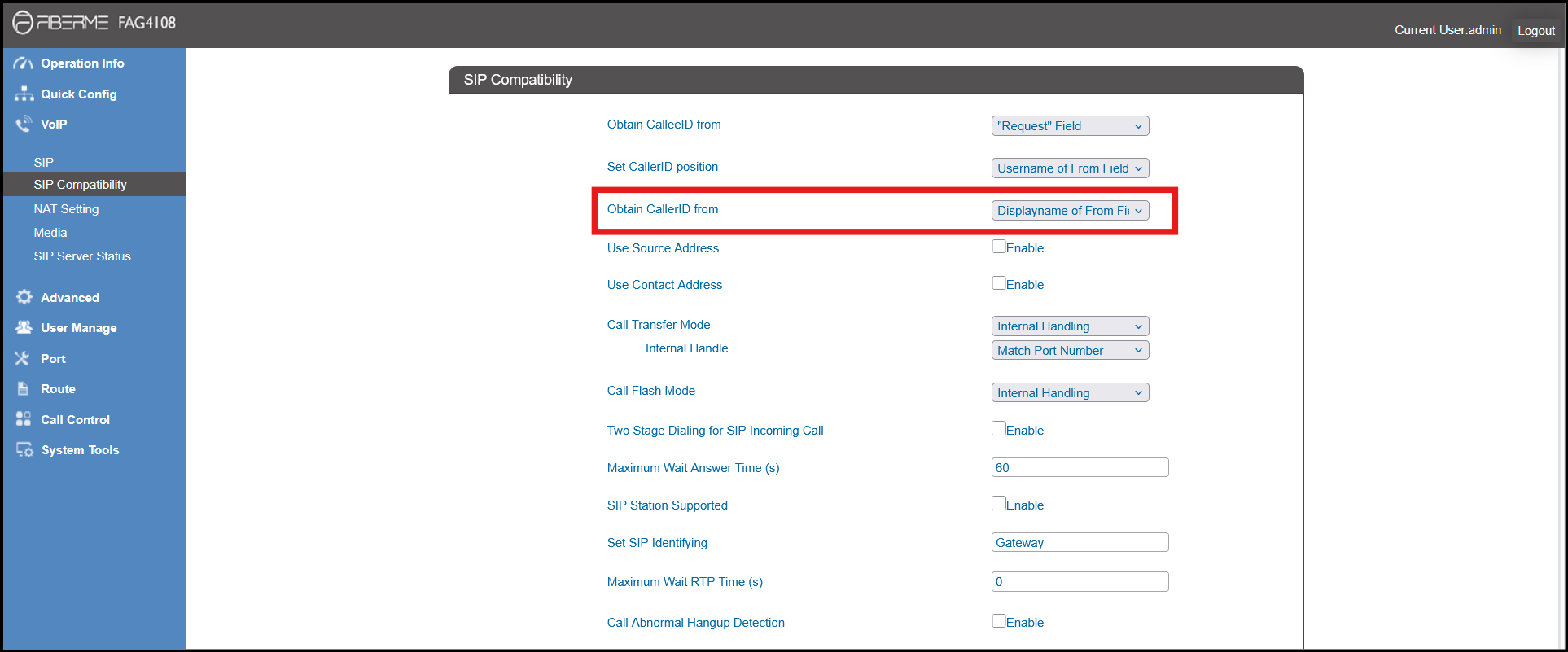

7- Navigate to ->SIP Compatibility
8- Make Obtain CallerID from : Displayname of From Field

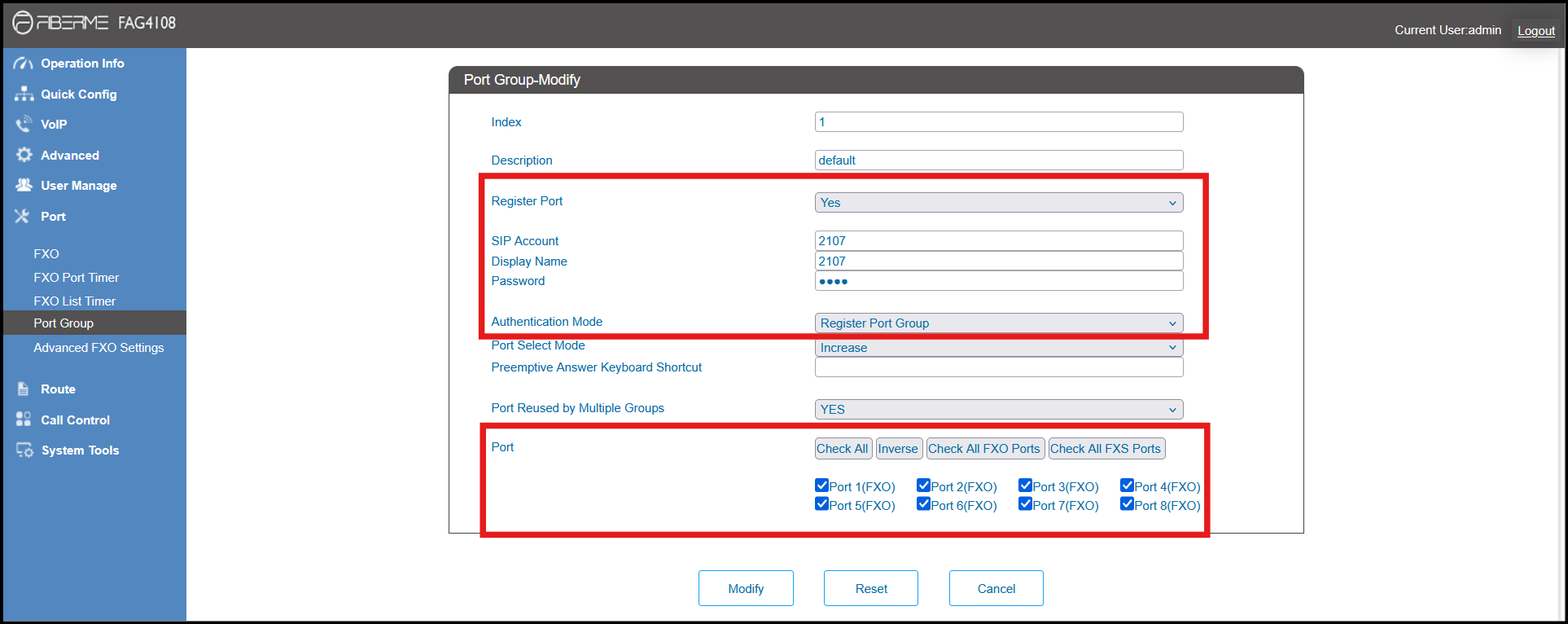

9- Navigate to Port -> Port group
10- Make Register Port -> Yes
11-Write Trunk name you make in FCM5600 in -> “SIP Account”
12- Write Password of this trunk -> password
13- Make Authentication Mode -> “Register port group”
14- Check All ports or check ports you need .

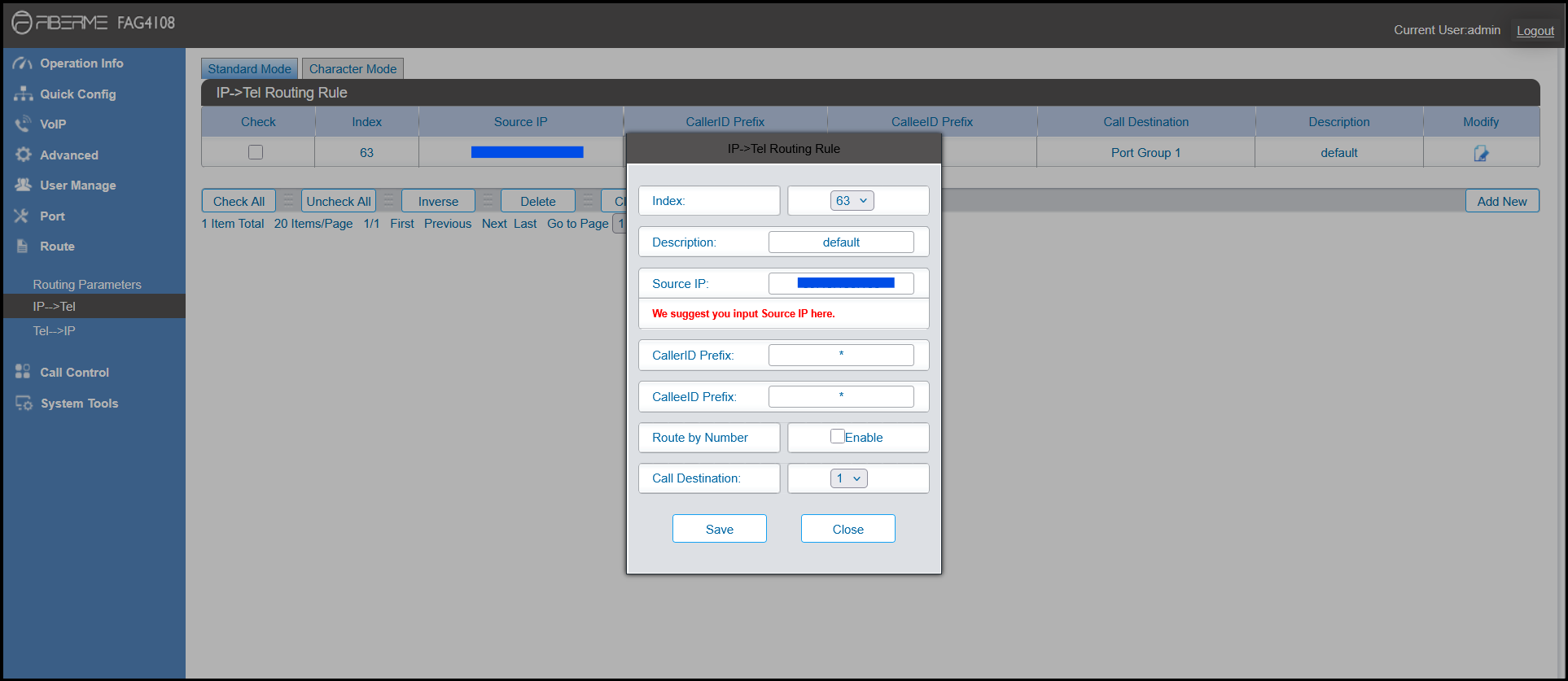

15- Navigate to Route -> “IP->tel“
16- In Source IP: Write your domain yourcompanyname.fiberme.cloud
“However, you can’t enter a domain in this field, so you need to convert the domain to an IP address.“
17- In Call Destination: choose Port group you make
18 – don’t create inbound
no TEL -> IP
