To establish connectivity between the FCM630A and FAG410X, we need to configure a trunk between the two systems. This will allow extensions using external PSTN trunk connections.
IPPBX
Model: FCM630A
IP: 192.168.99.250
GETAWAY
Model: FAG410X
Ip: 192.168.99.239

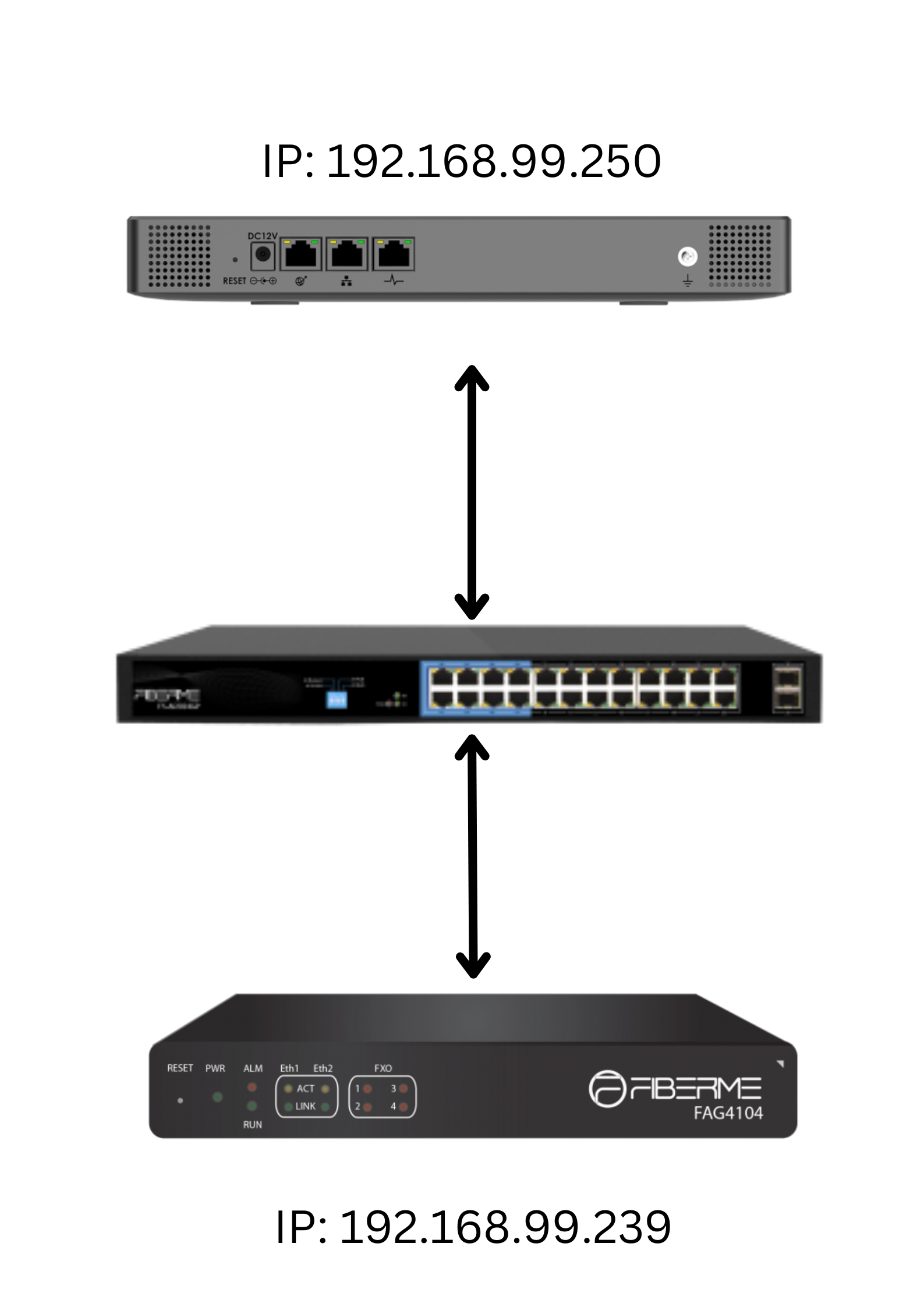

TOPOLOGY
CONNECT FCM630A TO FAG410X USING PEER SIP TRUNK #
Create IVR On FCM630A #

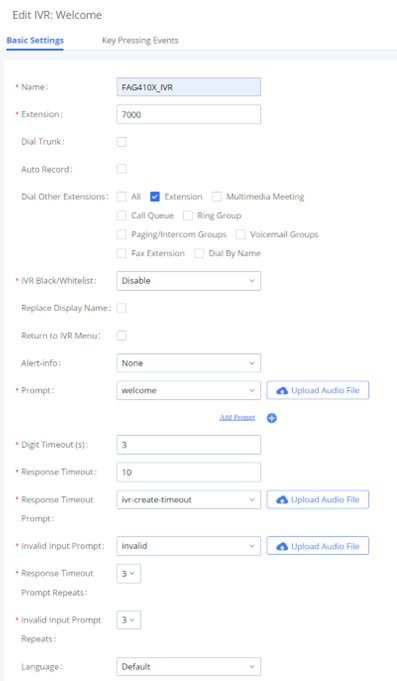

On the FCM630A web GUI, create an IVR extension under Call Features->IVR.
In IVR settings, if “Dial Other Extensions” is enabled, the calls dialing into the FCM630A IVR will be able to reach the internal extensions registered to the FCM630A. Also, you can assign the “Key Pressing Event” to different destinations.
Create Peer SIP TRUNK On FCM630A #

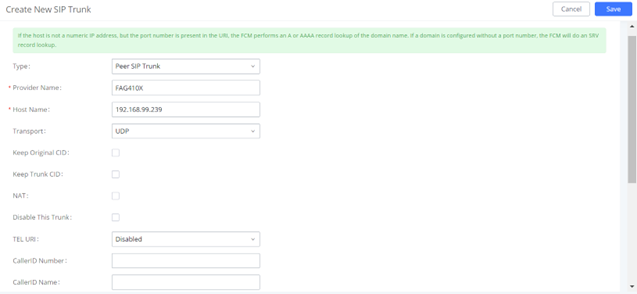

On the FCM630A web GUI, create a peer SIP trunk under Extension/Trunk ->VOIP Trunks. In this example, the FAG410X IP address is 192.168.99.239.
Save
Back to edit trunk
Navigate to Advanced Settings

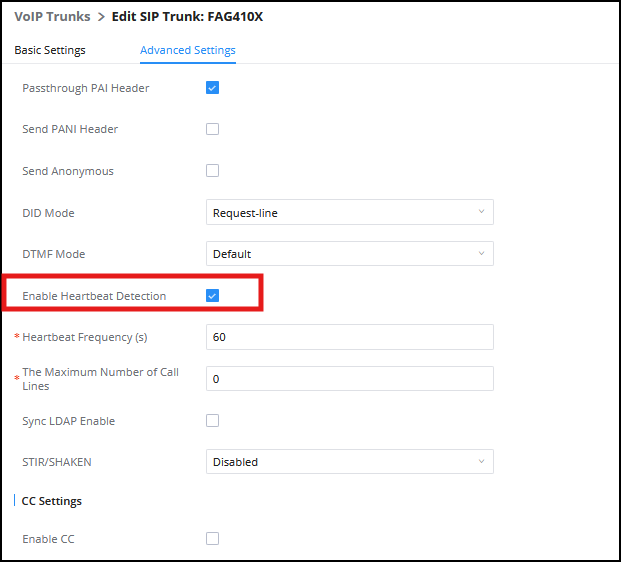

Enable “Enable Heartbeat Detection”
Configure Outbound Rule on FCM630A #

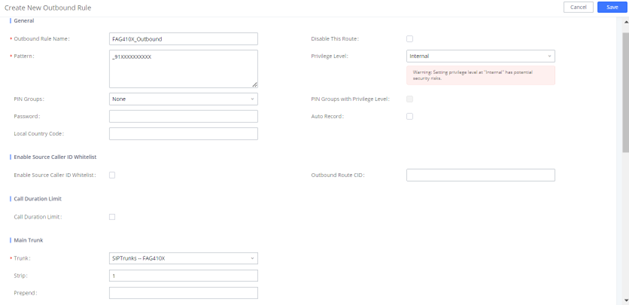

On the FCM630A web GUI, go to Extension/Trunk ->Outbound Routes to create a new outbound rule. This would allow the extension on the FCM630A to reach numbers in PSTN network via the peer SIP trunk we just configured.
In this example pattern “91XXXXXXXXXX”, 9 is the first dialing digit and it will be stripped off when the call goes out.
Configure Inbound Rule on FCM630A #

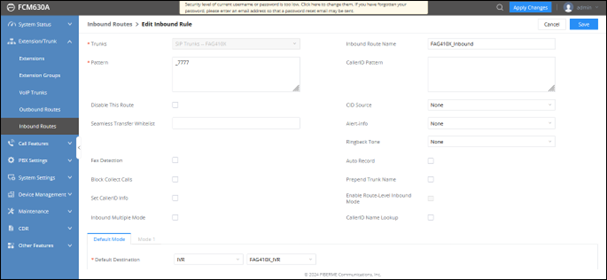

On the FCM630A web GUI, go to Extension/Trunk ->Inbound Rules to create a new inbound rule. In this example, we create the DID as 7777, which will be used in the FAG410X call forward setting.
The default destination is configured to IVR. Ensure to select the proper extension for the IVR.
Connect FAG410X with FCM630A #

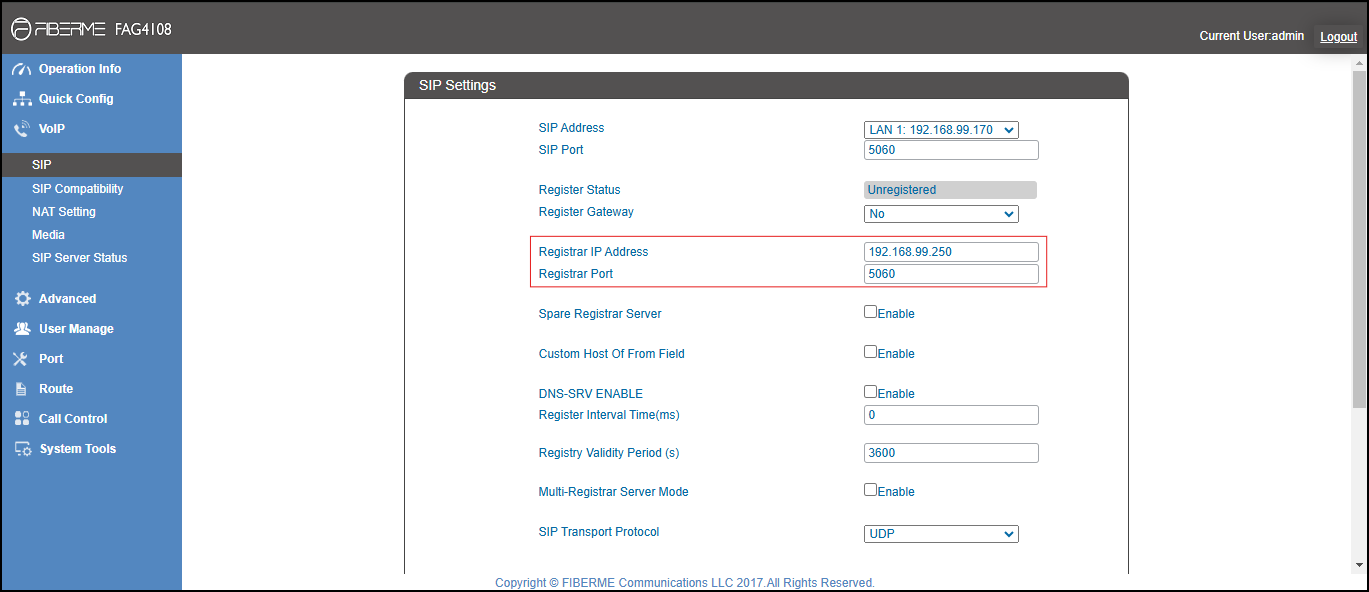

1- On the FAG410X web GUI, go to the VoIP->SIP page and enter the IP address of the FCM630A that you are peering with.

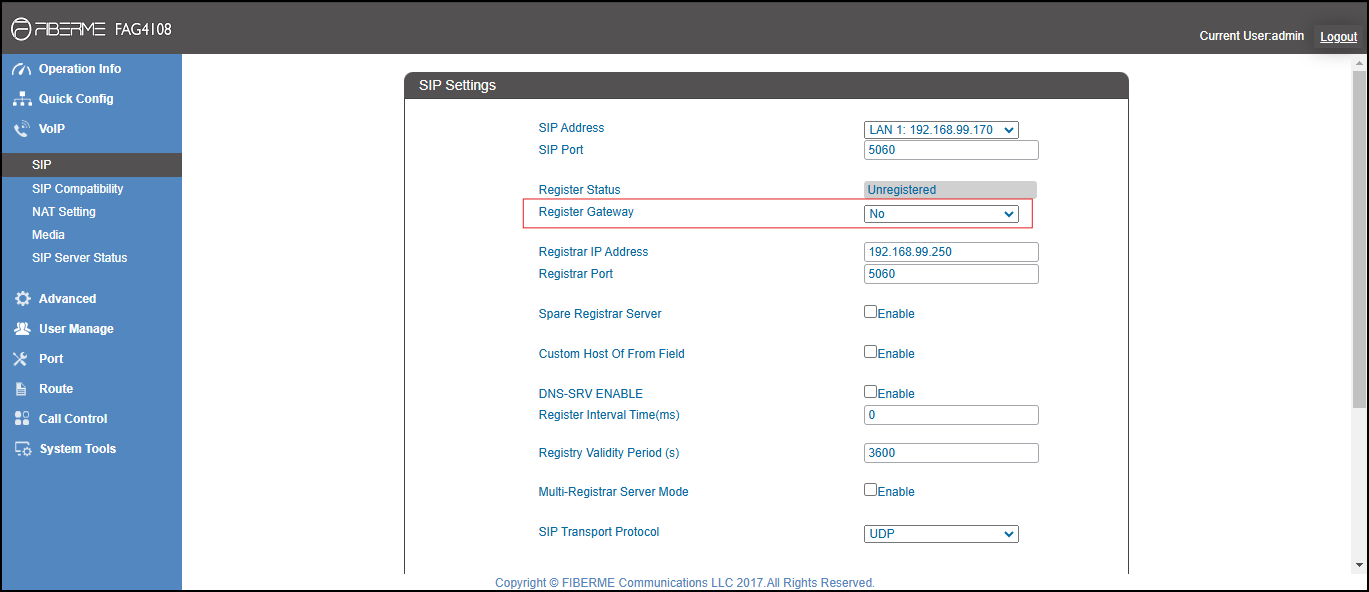

Please make sure the Register Gateway option under VoIP-> SIP is set to No. In the following example, FCM630A has IP address 192.168.99.250.
Configure FXO Port on FAG410X #
1- Connect the PSTN line to the FAG410X FXO port.

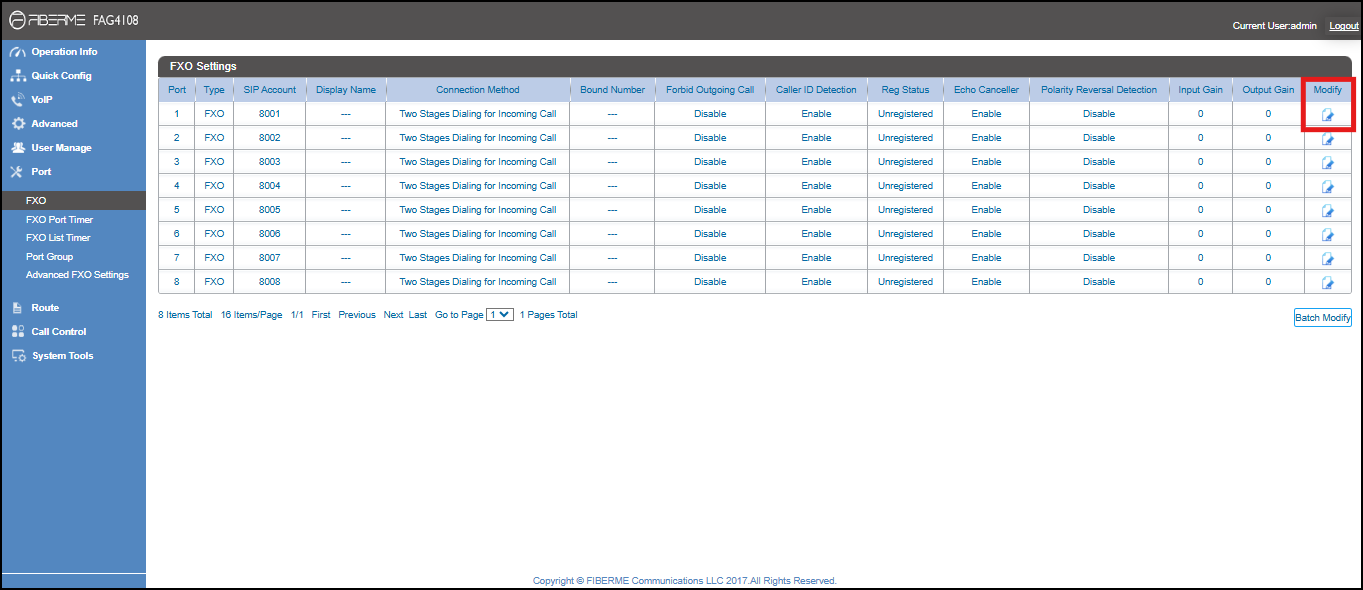

2-On the FAG410X web GUI, go to the Port->FXO page and press Modify on the FXO port you will use.

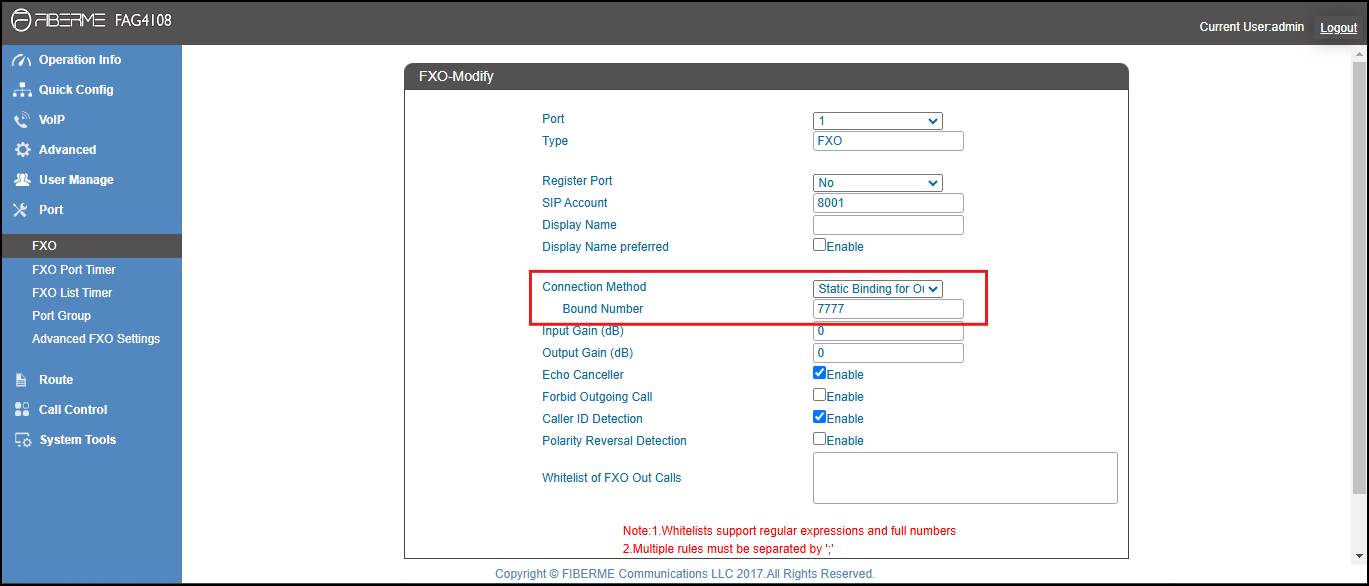

3- Make Connection Method (Static Binding for outgoing/incoming call)
4- Write Number 7777 to be matched with the DID number we configured in FCM630A Inbound Route.
Create Port Group on FAG410X #

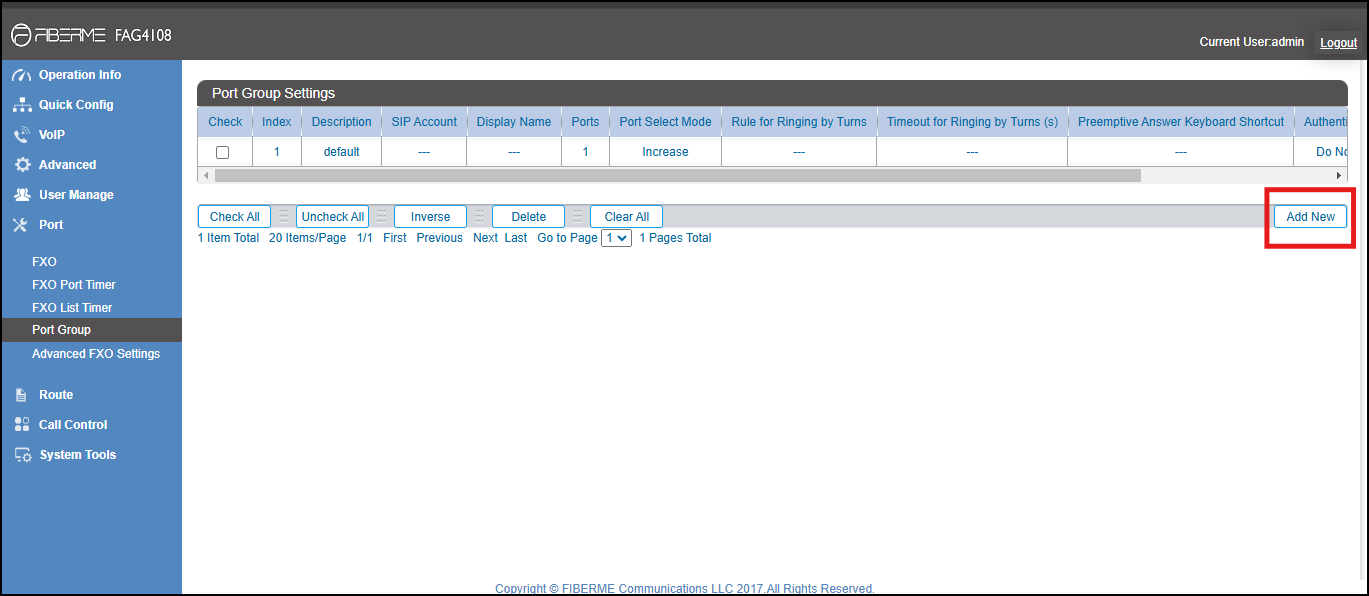

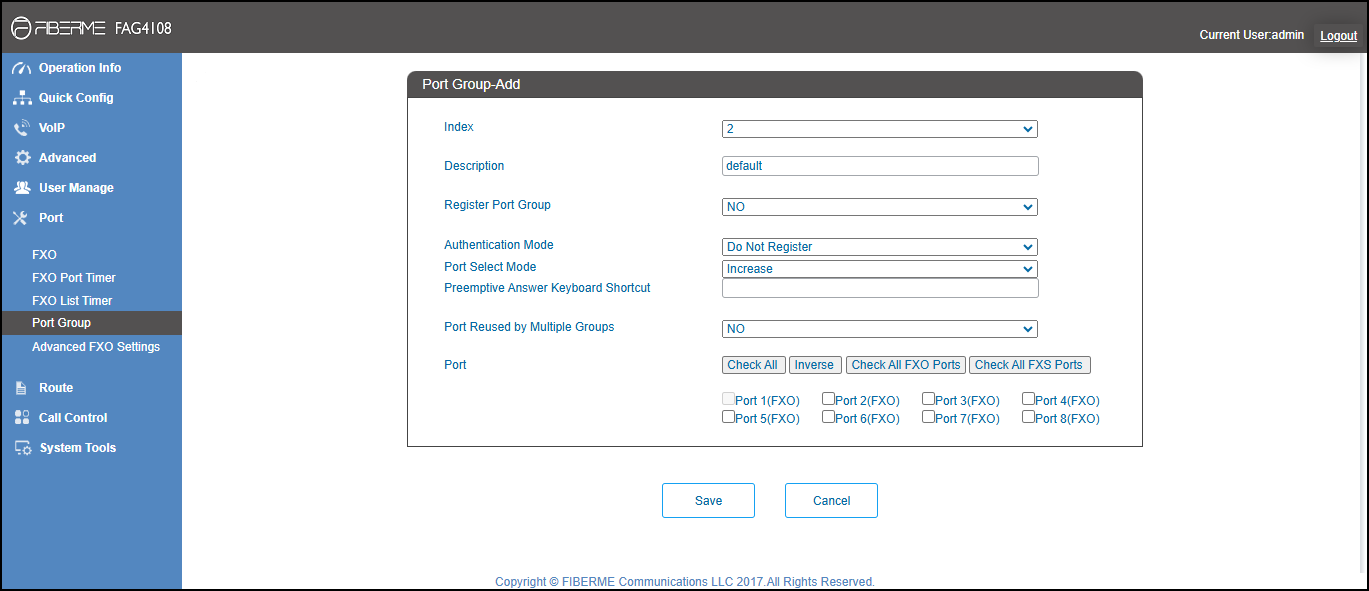

1- On the FAG410X web GUI, go to the Port->Port Group page and press “Add New”.
2- Select the FXO port you will use.
FAG410X CALL Routing #
Configure IP to Tel on FAG410X #

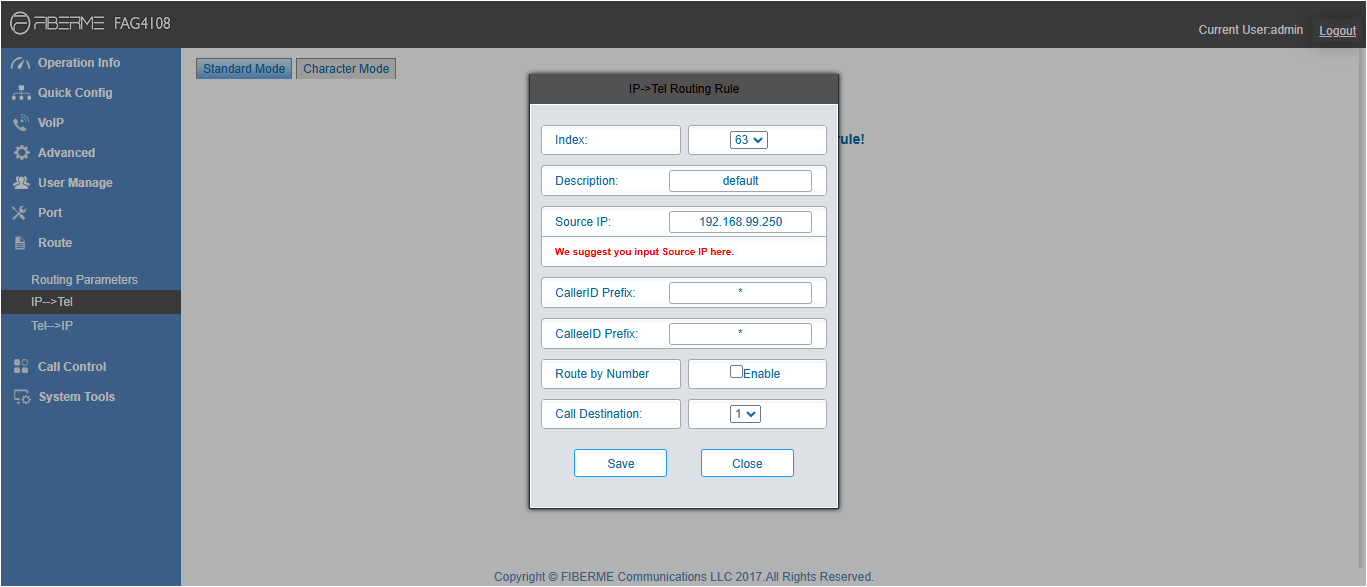

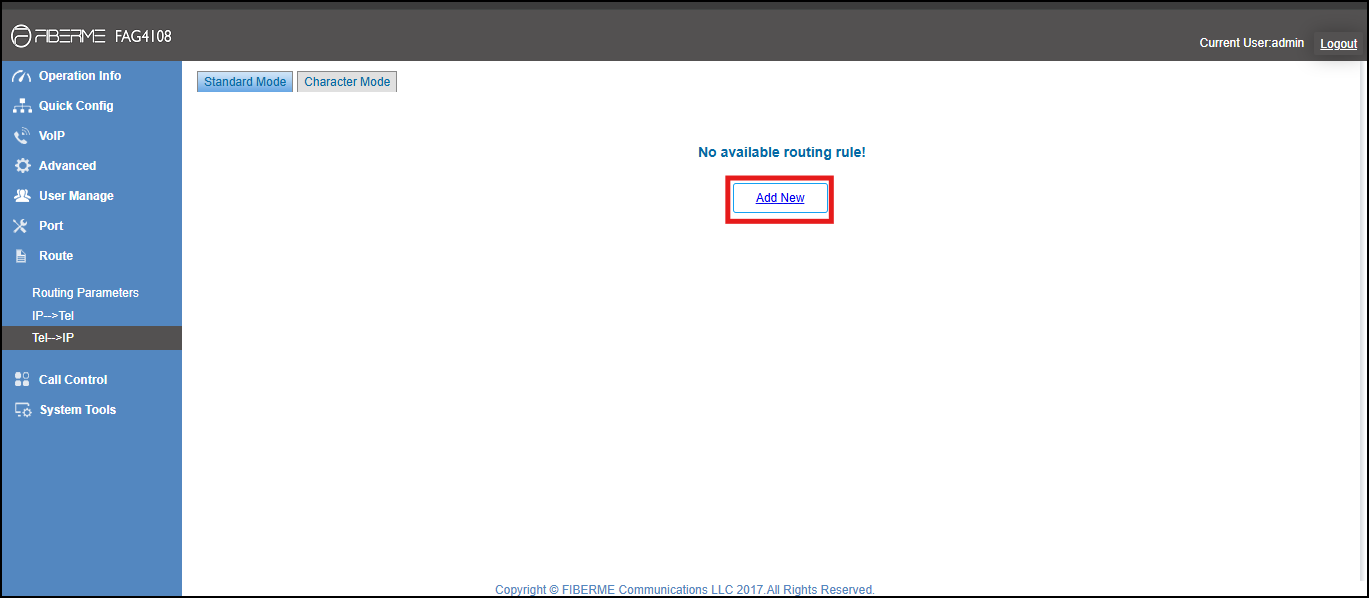

1- On the FAG410X web GUI, go to the Route-> IP->TEL page, Press “Add New”.
2- Enter the FCM630A IP address in “Source IP” and select the Port Group you will use from “Call Destination”.
Configure TEL to IP on FAG410X #

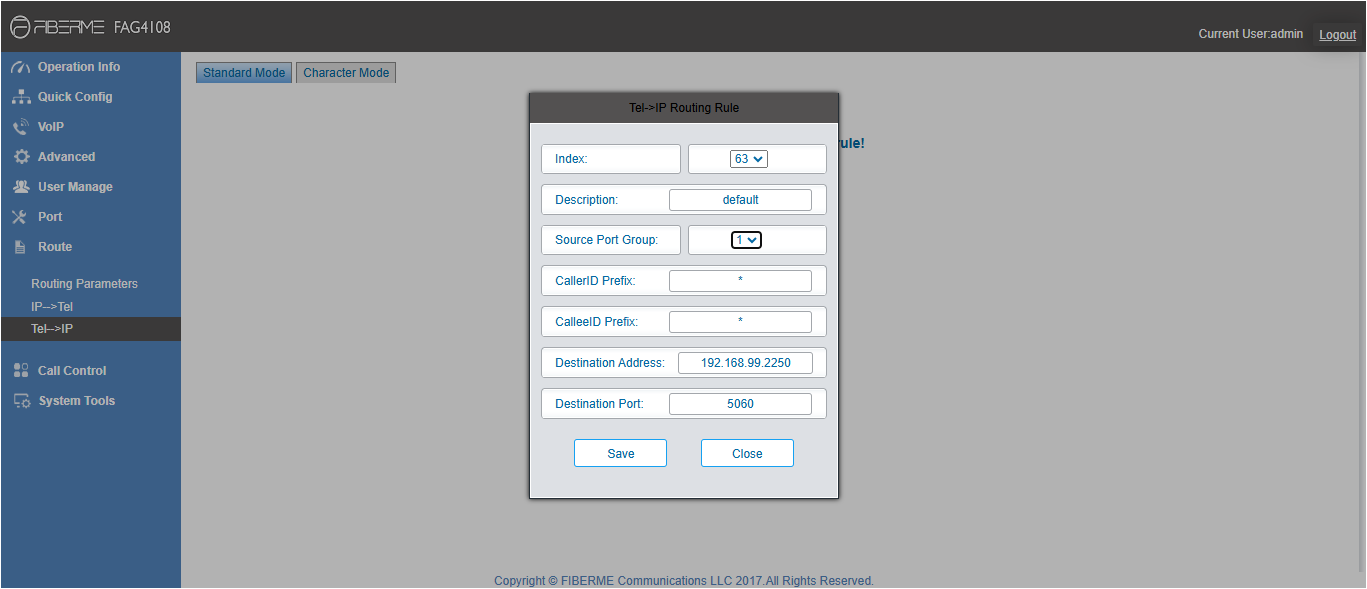

On the FAG410X web GUI, go to the Route-> TEL->IP page, Press “Add New”.
Select the Port Group you will use from “Source Port Group” and enter the FCM630A IP address in “Destination Address”.
