To establish connectivity between the IPPBX(A) and IPPBX(B), we need to establish a connection between the two systems. This will allow extensions in both directions to communicate with each other.


 IPPBX

Model: FCM5600 (A)

Extensions Range from 1000 to 1009

Ip: 192.168.0.101

IPPBX

Model: FCM5600 (B)

Extensions Range from 2000 to 2009

Ip: 192.168.0.102

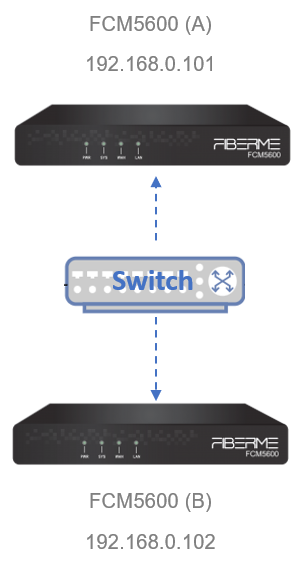

 TOPOLOGY



1-   CONNECT FCM5600 (A)  TO FCM5600 (B)  USING PEER SIP TRUNK

1.1-  Create SIP Trunk on FCM5600 (A)

Login into FCM5600 (A)  web GUI.

On FCM5600 (A)  web GUI, to create a peer SIP trunk, navigate to “PBX Settings-> Extensions/Trunks -> Trunks” and then click “Add” to configure a new trunk.

To establish a peer SIP trunk between FCM5600 (A)  and FCM5600 (B), First, make sure that “Authentication” field is disabled, then on the “Server Address” field enter the IP address of FCM5404 which in this scenario is 192.168.0.102. then make sure that “Port” field is set to “5080” and set the “Type” as Client Mode.

make sure to press Submit and Apply Changes

A new trunk has been configured


1.2-  Create SIP Trunk on FCM5600 (B)

 Login into FCM5600 (B)  web GUI.

On FCM5600 (B)  web GUI, to create a peer SIP trunk, navigate to “PBX Settings-> Extensions/Trunks -> Trunks” and then click “Add” to configure a new trunk.

To establish a peer SIP trunk between FCM5600 (A)  and FCM5600 (B), First, make sure that “Authentication” field is disabled, then on the “Server Address” field enter the IP address of FCM5404 which in this scenario is 192.168.0.102. then make sure that “Port” field is set to “5080” and set the “Type” as Client Mode.

make sure to press Submit and Apply Changes

A new trunk has been configured



2-   CALL ROUTING ON FCM5600 (A)

2.1- Configure Outbound Routes on FCM5600 (A)

Navigate to “PBX Settings -> Outbound Control -> Dial Rules” then click on “Add” Button, then give a name to this rule (Example: To PBX), and press “Submit” to save the rule.

Rule name will be listed, click on “+” button under the rule name to add Dial Rule details, and use the following information:

– In the Dial Pattern field, please write: 200x

– From “Available Trunks” please select the trunk that you created “FCM5404

– Click on “Submit” to save to rule details.

– Click on “Apply Changes” in the top right of the page to apply all changes.

Please be sure that all extensions in IPPBX can use this dial rule.

A new route has been configured.


2.2-  Configure Inbound Routes on FCM5600 (A)

 There is no need to configure inbound route because is already configured by DID.



3- CALL ROUTING ON FCM5600 (B)

3.1- Configure Outbound Routes on FCM5600 (B)

Navigate to “PBX Settings -> Outbound Control -> Dial Rules” then click on “Add” Button, then give a name to this rule (Example: To PBX), and press “Submit” to save the rule.

Rule name will be listed, click on “+” button under the rule name to add Dial Rule details, and use the following information:

– In the Dial Pattern field, please write: 200x

– From “Available Trunks” please select the trunk that you created “FCM5404

– Click on “Submit” to save to rule details.

– Click on “Apply Changes” in the top right of the page to apply all changes.

Please be sure that all extensions in IPPBX can use this dial rule.

A new route has been configured.


3.2- Configure Inbound Routes on FCM5600 (B)

There is no need to configure inbound route because is already configured by DID.
