How to configure Yeastar P-Series to FAG410X using peer SIP trunk
To establish connectivity between the Yeastar P-Series and FAG410X, we need to configure a trunk between the two systems. This will allow extensions using external PSTN trunk connections.
On this page
IPPBX
Model: Yeastar P-Series
IP: 192.168.99.11
GATEWAY
Model: FAG410X
Ip: 192.168.99.239

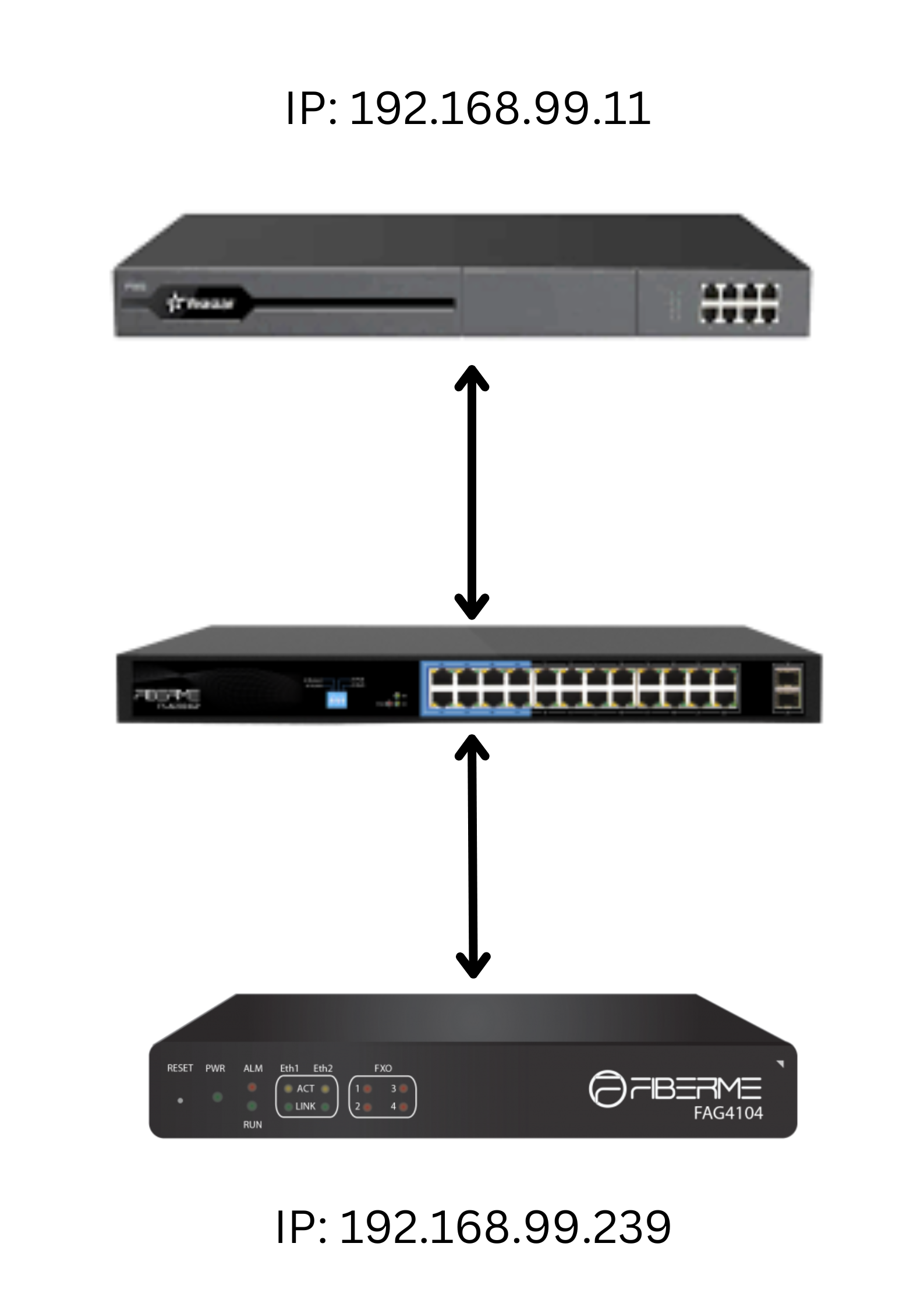

TOPOLOGY
Connect P550 to FAG410X using peer SIP trunk#
Create IVR On P550#

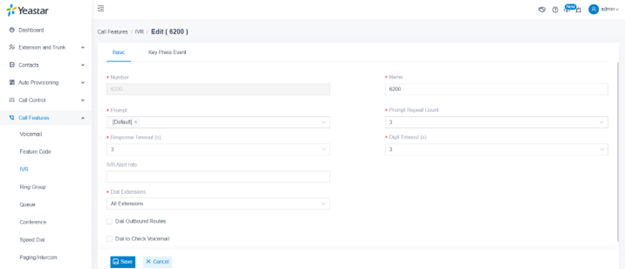

On the P550 web GUI, create an IVR extension under Call Features->IVR.
In IVR settings, if “Dial Extensions” is enabled, the calls dialing into the P550 IVR will be able to reach the internal extensions registered to the P550. Also, you can assign the “Key Press Event” to different destinations.
Create Peer SIP TRUNK On P550#

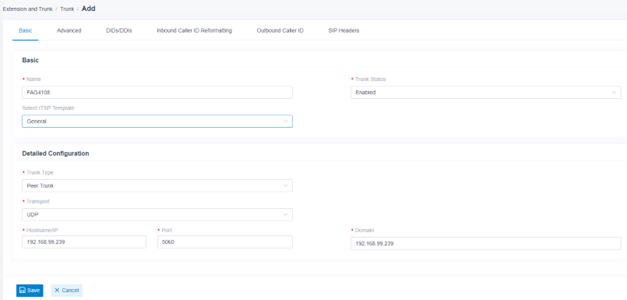

On the P550 web GUI, create a peer SIP trunk under Extension and Trunk ->Trunk. In this example, the FAG410X IP address is 192.168.99.239
Configure Outbound Rule on P550#

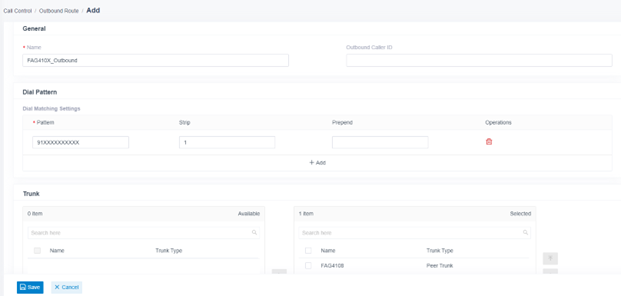

1- On the P550web GUI, go to Call Control ->Outbound Route to create a new outbound rule. This would allow the extension on the P550 to reach numbers in PSTN network via the peer SIP trunk we just configured.
2- In this example pattern “91XXXXXXXXXX”, 9 is the first dialing digit and it will be stripped off when the call goes out.
Configure Inbound Rule on P550#

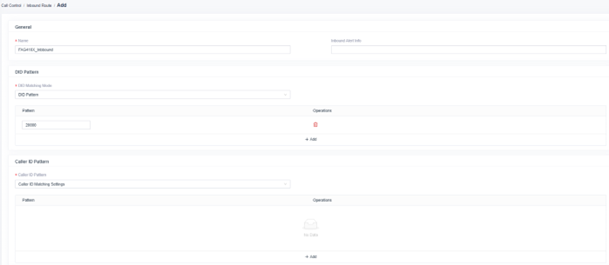

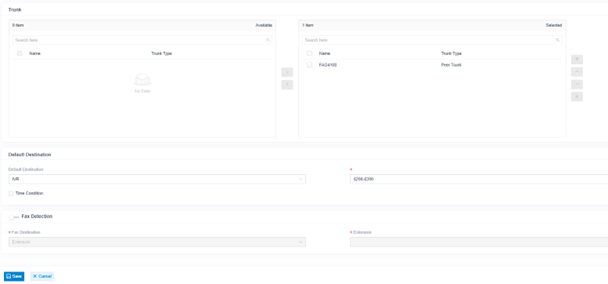

On the P550 web GUI, go to Call Control ->Inbound Route to create a new inbound rule. In this example, we create the DID as 20000, which will be used in the FAG410X call forward setting.
The default destination is configured to IVR. Ensure to select the proper extension for the IVR.
Connect FAG410X with Yeastar#

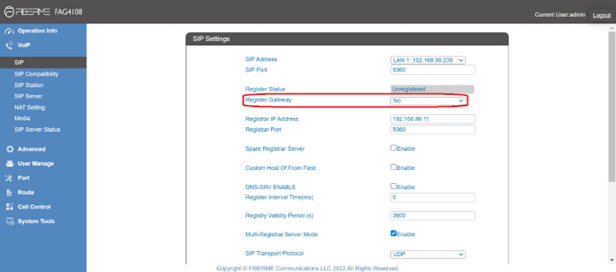

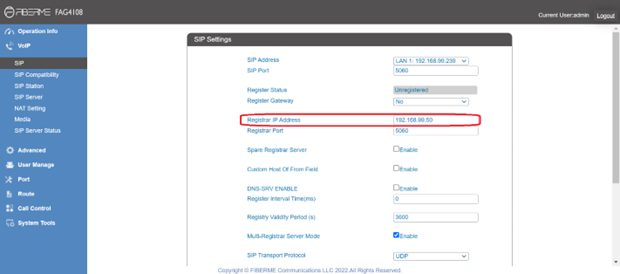

1- On the FAG410X web GUI, go to the VoIP->SIP page and enter the IP address of the P550 that you are peering with.
2- Please make sure the Register Gateway option under VoIP-> SIP is set to No. In the following example, Yeastar has IP address 192.168.99.11
Configure FXO Port on FAG410X#
1- Connect the PSTN line to the FAG410X FXO port.

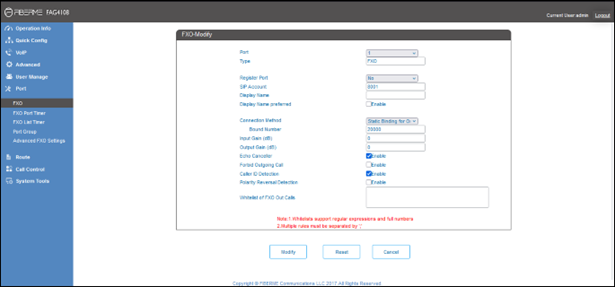

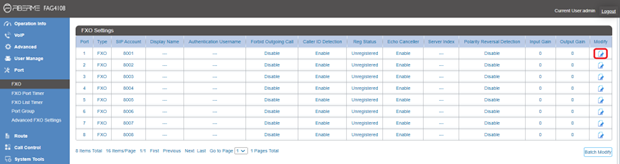

2-On the FAG410X web GUI, go to the Port->FXO page and press Modify on the FXO port you will use.
3- Make Connection Method (Static Binding for outgoing/incoming call)
4- Write Number 20000 to be matched with the DID number we configured in FCM630A Inbound Route.
Create Port Group on FAG410X#

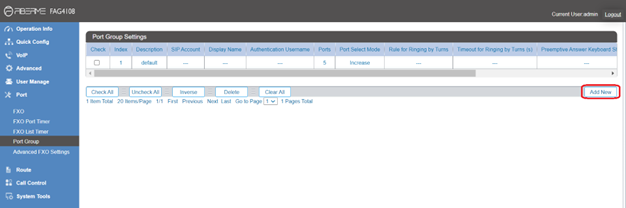

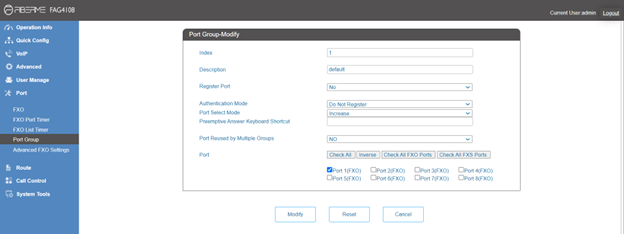

1- On the FAG410X web GUI, go to the Port->Port Group page and press “Add New”.
2- Select the FXO port you will use.
FAG410X CALL Routing#
Configure IP to Tel on FAG410X

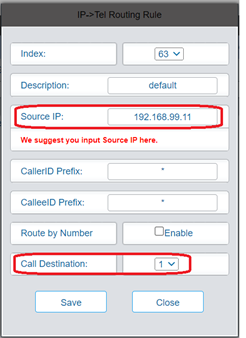

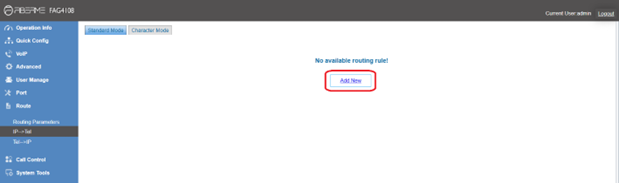

1- On the FAG410X web GUI, go to the Route-> IPàTEL page, Press “Add New”.
2- Enter the Yeastar Server IP address in “Source IP” and select the Port Group you will use from “Call Destination”.
Configure TEL to IP on FAG410X

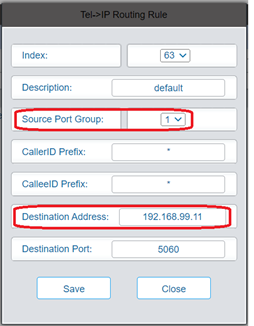

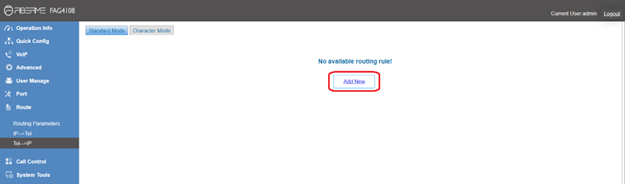

On the FAG410X web GUI, go to the Route-> TEL->IP page, Press “Add New”.
Select the Port Group you will use from “Source Port Group” and enter the Yeastar IP address in “Destination Address”.
