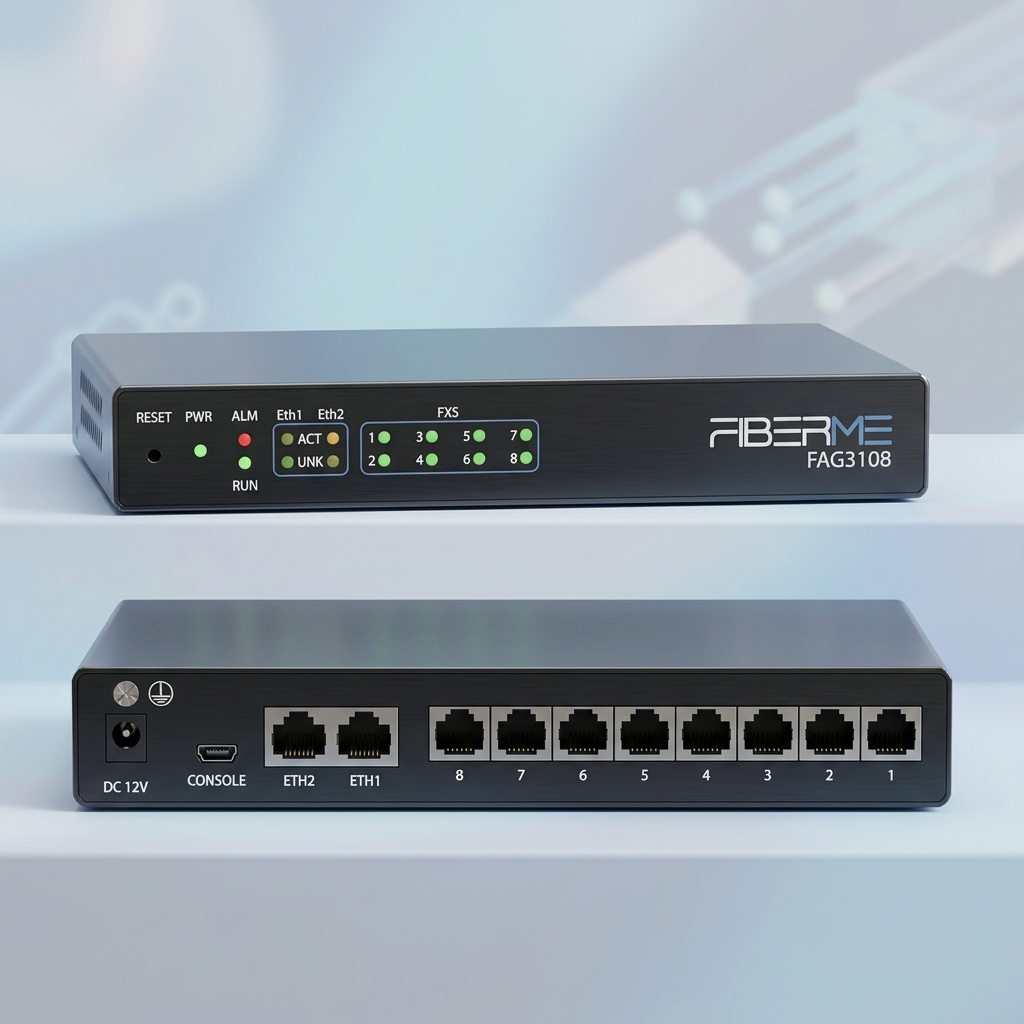

FAG3108
FXS Gateway
The FIBERME FAG3108 Analog Gateway is a reliable and high-performance communication solution designed to convert traditional analog PSTN signals into IP-based voice traffic for transmission over standard IP networks. Equipped with 8 FXS ports, it enables businesses to connect analog telephones, fax machines, and other legacy devices to modern VoIP and IP telephony environments.
The FAG3108 is ideally suited for small and medium-sized businesses, call centers, branch offices, and organizations seeking a cost-effective migration from conventional telephone systems to IP-based communications. Supporting the standard SIP protocol, the gateway ensures seamless interoperability with leading SIP-based IP PBX systems, softswitches, and hosted telephony platforms. Its flexible design helps businesses protect their existing analog-device investment while benefiting from the scalability, efficiency, and advanced capabilities of modern VoIP solutions.
Features
Fit to Diverse Applications
Used to connect IP telephones to a legacy PBX, integrate network-hosted applications with the PBX, extend the PBX to branch offices, and integrate various voice and call processing capabilities in an enterprise LAN or WAN environment
Flexible Call Routing
Calls from the switched network to a VoIP destination on the IP network or conversely, and support the following call routing options: TDM to IP or IP to TDM, with IP load balancing, IP fault tolerance
Controlled Migration to IP
Compatible with general FXS lines, and a variety of popular PBX manufacturers and protects investment in legacy telecommunications equipment.
User-Friendly Management
Supports configuration via serial, Telnet, and a web browser including context-sensitive help. Easy to install, configure, debug, and maintain.
Enhanced Voice/Fax Processing
Supports a variety of compression algorithms, including G.711 A-law and μ-law, G.729A/B; Transcode fax from T.30 fax protocol (supporting V.17) to T.38 for transmission over a packet network.
Web Server Interface & Hot Swap
Each gateway unit is delivered with a web server interface, allowing configuration and software upgrades via a web browser; Allows gateway units to be added or removed without affecting other gateway.
Remote Business
Designed to connect remotely with FIBERME FCM Series of IPPBX using FRC (FIBERME Remote Connect) Cloud Service
Specifications
- Analog Ports
- 8 FXS Ports
- Network Interfaces
- 2* 10/100 Base-T Ethernet LAN ports
- Console Port
- 1x RS232, 115200bps
- Voice and Fax
- G.711A/U law, G.723.1, G.729 A/B, AMR,iLBC
Silence Suppression
Comfort Noise Generation(CNG) Voice Activity Detection(VAD)
Echo Cancellation(G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer Hook Flash
Programmable Gain Control
T.38/Pass-through
High-speed fax up to 14.4kbps Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P/802.1Q
(data/voice/management VLANs) Layer3 QoS and DiffServ - FXS Connector
- RJ11
Dial Mode: DTMF and Pulse
Caller ID: DTMF/FSK CLI Presentation Max Cable Length: 5 km
Reversed Polarity
Programmable Call Progress Tone - Software Features
- Hunting Group Web ACL
PPPoE/IPv4/IPv6
Digitmap
Routing Rules based Prefixes Caller/Called Number Manipulation - Maintenance
- SNMP v1/v2/v3
TR069
Auto Provisioning Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via Web CDR
Syslog(Emerg,alert, critical,error warning,notice,info, debug)
Ping/Tracert Test Network Capture
NTP/Daylight Saving Time - VoIP Protocols
- SIP v2.0 (UDP/TCP),RFC3261 SDP,RTP(RFC2833), RFC3262,3263,3264, 3265,3515,2976,3311
SIP TLS/SRTP
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
DNS SRV/ A Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT - Power Supply
- 12V – 1.0A
- Storage Temperature
- 20 ℃ ~85 ℃
- Humidity
- 10%-90% Non-Condensing
- FRC Support
- Yes
- Mounting
- Desktop
- Compatibility
- The FIBERME FAG3108 Series is fully compatible with all SIP-based communication devices.
