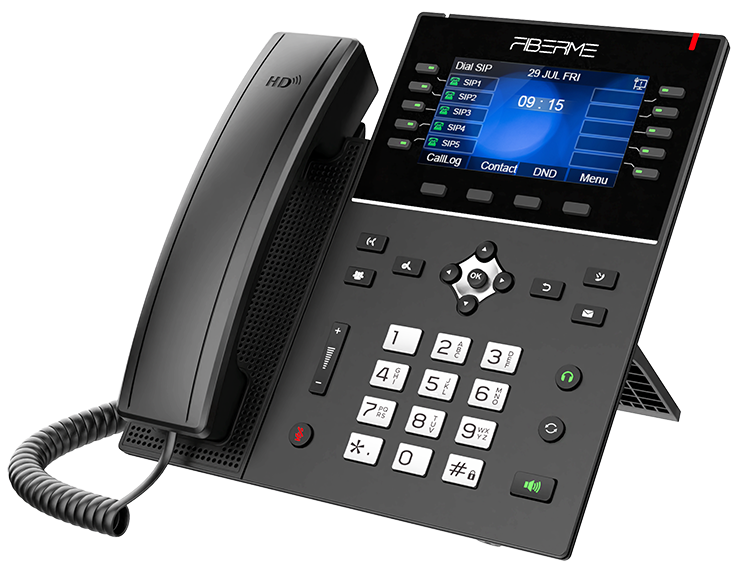

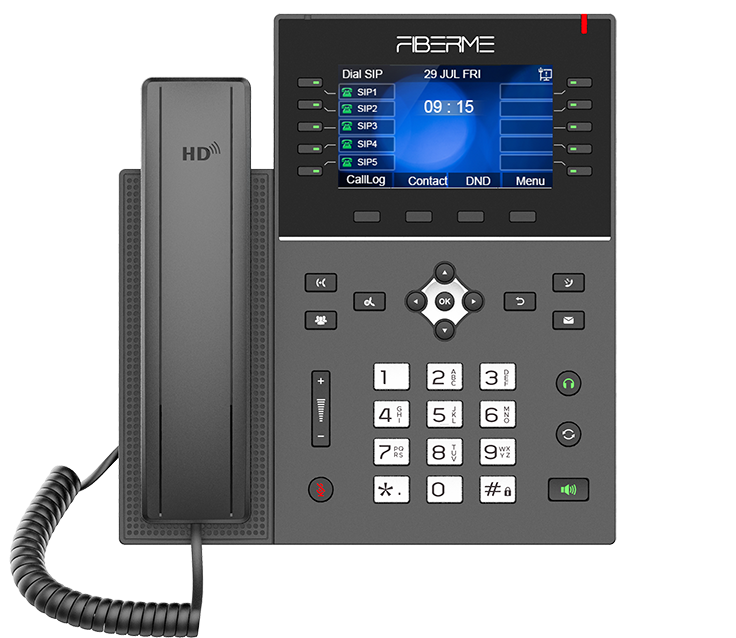

FAP2760
Enterprise IP Phone
The FIBERME FAP2760 Enterprise IP Phone is a high-end business communication device engineered to meet the demanding requirements of modern enterprises, call centers, and professional office environments. Built for power users and decision-makers who rely on advanced telephony features, this phone combines robust functionality with a user-friendly interface and premium audio performance.
At the core of its capabilities, the FAP2760 supports up to 20 SIP accounts, enabling seamless multi-line operations, flexible call routing, and efficient handling of multiple simultaneous calls. Its large 4.3-inch color LCD screen provides clear visibility of call information, contacts, menus, and system status, making navigation and daily use intuitive and efficient.
The phone is equipped with 10 dedicated line keys for quick access to frequently used lines or extensions, plus 45 DSS (Direct Station Selection) keys that allow one-touch dialing, speed dial, BLF (Busy Lamp Field) monitoring, and easy management of internal and external contacts. This extensive key layout makes the FAP2760 ideal for executive assistants, receptionists, and team leaders who need instant access to a wide range of numbers and status indicators.
Features
Expansion Module Support

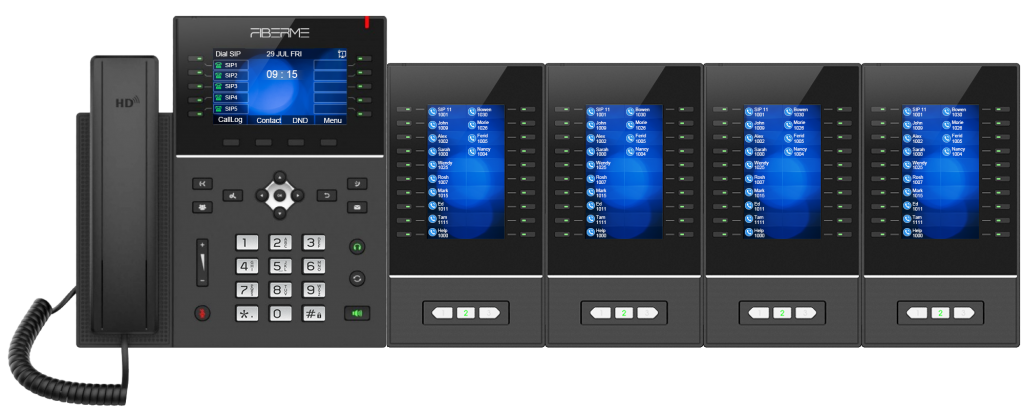

The FAP2760 itself comes equipped with 45 built-in DSS keys, providing immediate access to frequently used contacts and features directly from the handset. To further extend this capability, the phone supports connection to up to four Expansion Modules. Each Expansion Module adds an additional 60 DSS keys, enabling you to customize the phone’s layout according to your specific operational requirements and contact management preferences.

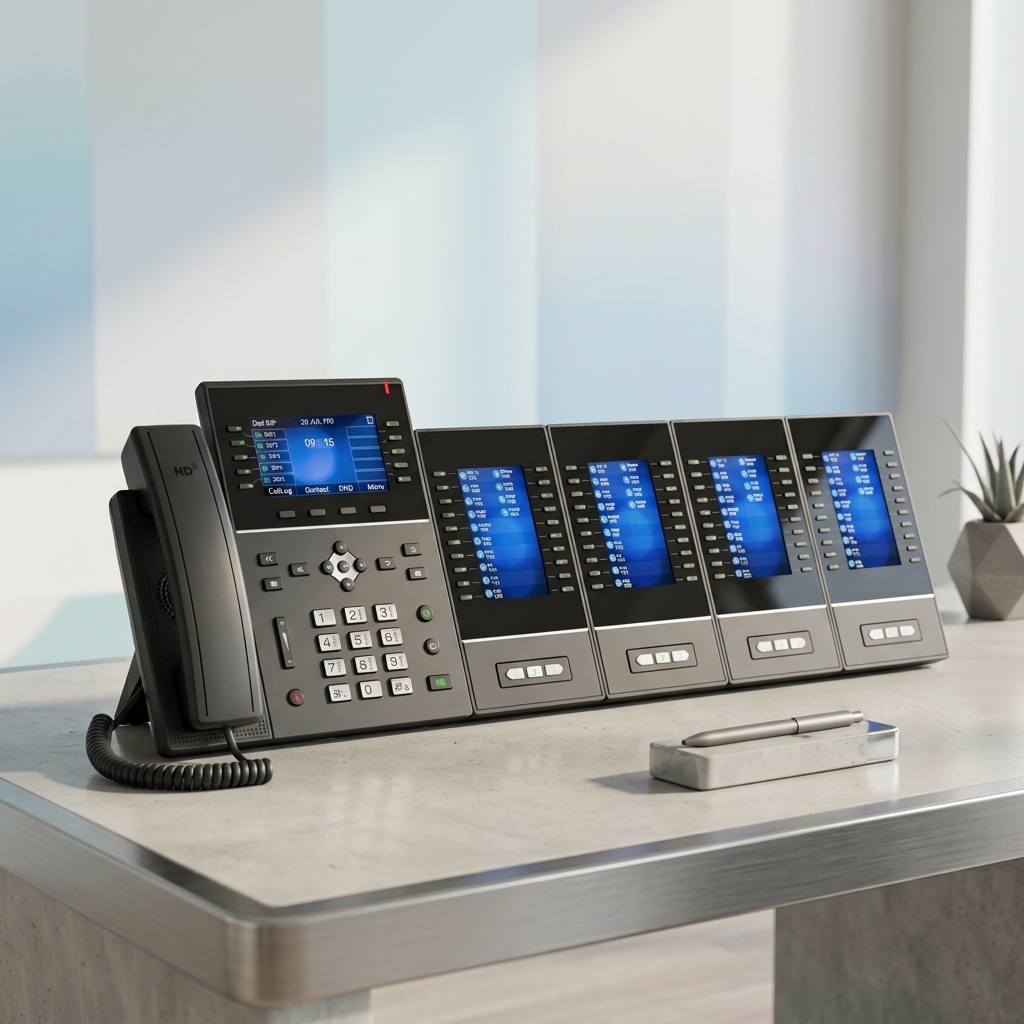

When fully expanded with four modules, the FAP2760 setup delivers a total of 285 DSS keys (45 on the base phone plus 240 across the four modules). This extensive key capacity ensures that even the most complex telephony environments such as large corporate offices, hotels, hospitals, and contact centers can be efficiently managed from a single device, improving call handling speed, reducing missed connections, and enhancing overall communication productivity.
All features
Specifications
- SIP Accounts
- 20 SIP Accounts
- Line Keys
- 10 Line Keys
- Display
- 4.3-inch 480×272 pixel color screen
- Ethernet Ports
- Dual Gigabit ports, integrated PoE
- Function Keys
- 10 DSS keys on the main display (9 DSS keys and 1 page key), up to 45 DSS
• keys (9 two-colored physical keys for up to 5 page)
• 7 keys, including:
Hold/Transfer/Conference/Back/CallLog/MWI/Redial, 3 Line keys (With LED
Indicator Light)
4 Soft-keys
2 Keys for with LED indicator light, including:mute/headset
1 OK key
4 Soft keys
12 Standard phone digits keys
2 Volume control keys (Up/Down)
1 Hands-free key for with LED indicator light - Other Ports
- 1 x Handset port, 1 x RJ9 Headset port
- Video Call Support
- Hardware video decoding: H.264
Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P - Phonebook / Call History
- 2000 Records; phonebook search/import/export; XML/LDAP remote phonebook;
blacklist
1000 Records; call history: all/missed/dialed/received - Audio Conference
- Supports 6-way audio conferencing for easy conference calls
- Phonebook
- 1000 records; phonebook search/import/export; XML/LDAP remote phonebook; blacklist
- Network Safety
- Physical: Ethernet, dual bridged port for PC bypass
IP Mode: IPv4/IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) - Auto Provision
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Audio Codec
- Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC/Opus
Wideband Codec: G.722, Opus - Power
- DC Power Input: 5V/2A (PSU Optional)
Power Consumption: Idle 1.38~1.98W, Peak 4.4~6.85W
Documents
- Admin Guide
